RC4WD 540 Crawler Brushed Motor, 55T: 3.5mm Bullet - Z-E0003
Sold out
$14.75
Tax line html
SKU RC4ZE0003
Key Features
- Custom made 540 steel case
- Chrome plated case
- Build in capacitor for minimizing glith
- High torque magnet and rotor

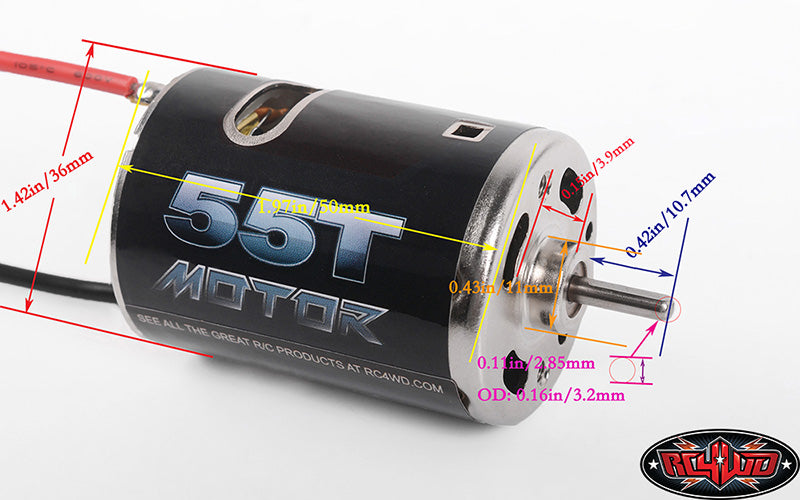

- Small footprint (50mm long)
- Tuned for rock climbing and scale driving
- Polished Bushings
Overview
Custom made to fit all popular truck such as Bully, AX10, Trail Finder!
Specifications:
(At no load) RPM @ 7.2V : 8000 (?10%), .75Amp Current
(Max Efficiency) RPM @ 7.2V : 6800 (?10%), 3.35Amp Current
Designed oprating temperature range: -30?C to +80?C
Motor end play : .50mm max
Noise level: < 60db
Specifications:
- Turns: 55T
- Connector Type: 3.5mm Bullet
- Motor Type: Brushed
- Motor Design: Inrunner
Features:
- Polished Bushings
- High torque magnet and rotor
- Small footprint (50mm long)
- Custom made 540 steel case
- Build in capacitor for minimizing glitches
- Chrome plated case
- Tuned for rock climbing and scale driving
Shipping Dimensions:
- Depth : 6.80 in
- Width : 5.30 in
- Height : 0.95 in
- Weight : 0.43 lb
